Moza R3 Xbox
$799.99
The MOZA R3 Racing Bundle sets the benchmark for entry-level racing, featuring a powerful 3.9Nm DD Servo Motor, aviation-grade aluminum construction, and durable ISF PU grips. Enjoy ultra-low torque ripple, mobile app control, and compatibility with top racing games like Forza Horizon and F1. With an innovative X-shaped design, intelligent temperature control, and customizable features, the R3 delivers immersive feedback and precision. Officially licensed for Xbox, this bundle merges console performance with MOZA’s Direct Drive technology. Elevate your racing setup with the MOZA R3 Racing Bundle.
SPECS
| Drive Type | Direct Drive |
| Max Wheel Rotation | Limitless |
| Housing Material | Aviation Aluminum Alloy |
| Color | Black |
| Peak Torque | 3.9 Nm |
| Rated Power | 60W |
| Input Voltage | 110V~220V AC → 12V DC |
| Encoder Resolution | 15 bits |
| USB Refresh Rate | 1000Hz |
| APP Functionality | Supported |
| Quick Release | Supported |
| Connection Ports | Power, DC Input, Pedal, USB, Dash |
| Accessories | Manual & Warranty Card, Power Supply, Data Cable, Toolkit |
| Mounting Method | 4 holes on the bottom |
| Table Clamp | Included |
| Online Firmware Upgrade | Supported |
| Grips | ISF PU |
| Face Plate Material | Aluminum Alloy |
| Shifter Paddle Material | Aluminum Alloy |
| Size | 280mm |
| Buttons | 22 |
| RPM LED Light | 10 High Brightness LED RGB Beads |
| Intelligent Telemetry | Supported |
| Fully Adjustable RPM LEDs | Supported (MOZA Pit House) |
| Release Method | MOZA Quick Release |
| Material | High-strength Steel |
| Plate Material | High-strength Steel |
| Color | Black |
| Throttle Sensor | Hall Sensor |
| Pedal Spacing | Adjustable |
| Pedal Plate Height | Adjustable |
| Pedal Input Adjustment | Supported |
| Pedal Input Reversal | Supported |
| Pedal Output Curve Adjustment | Supported |
- R3 DD Base × 1

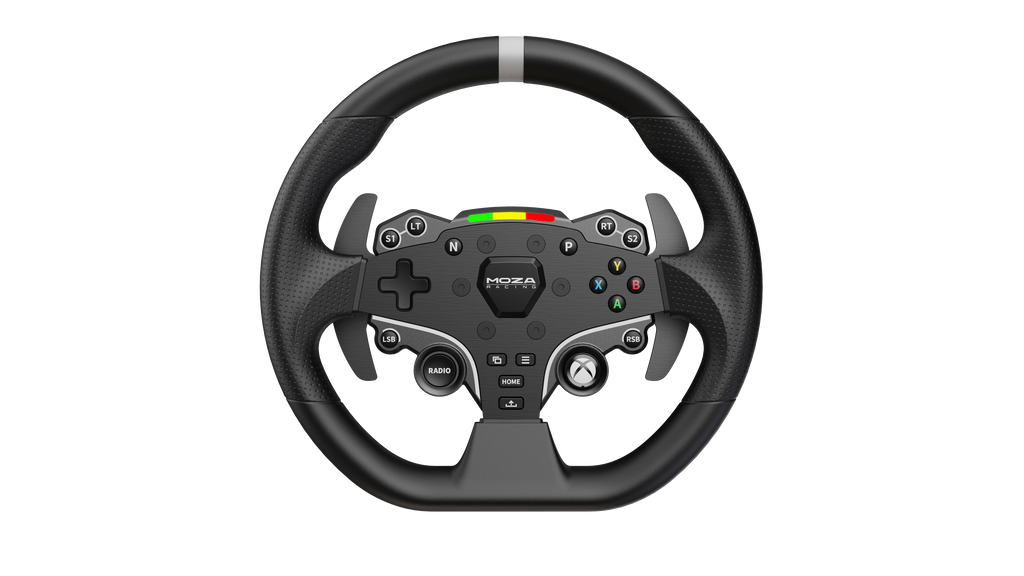

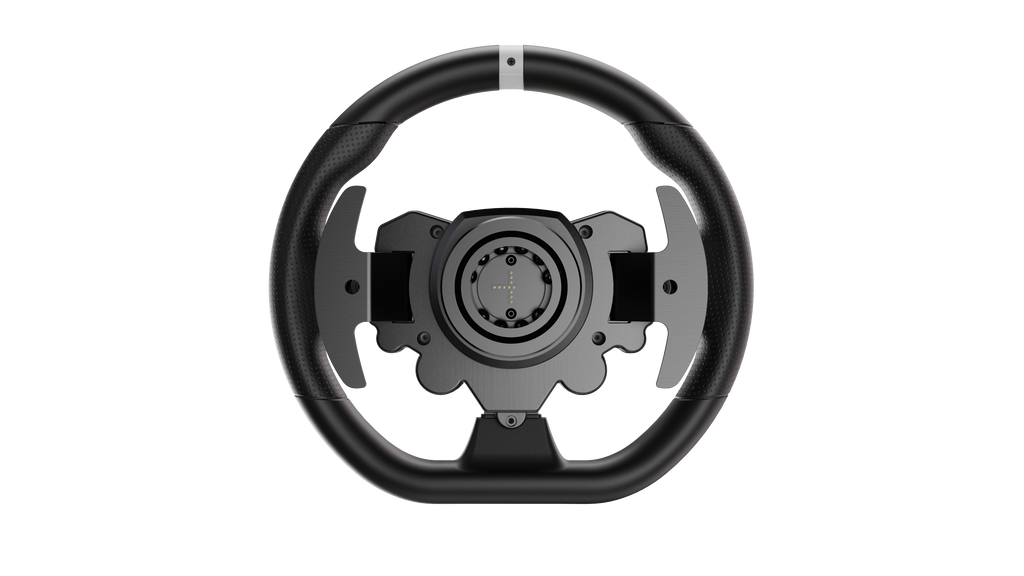

- ESX Steering Wheel × 1

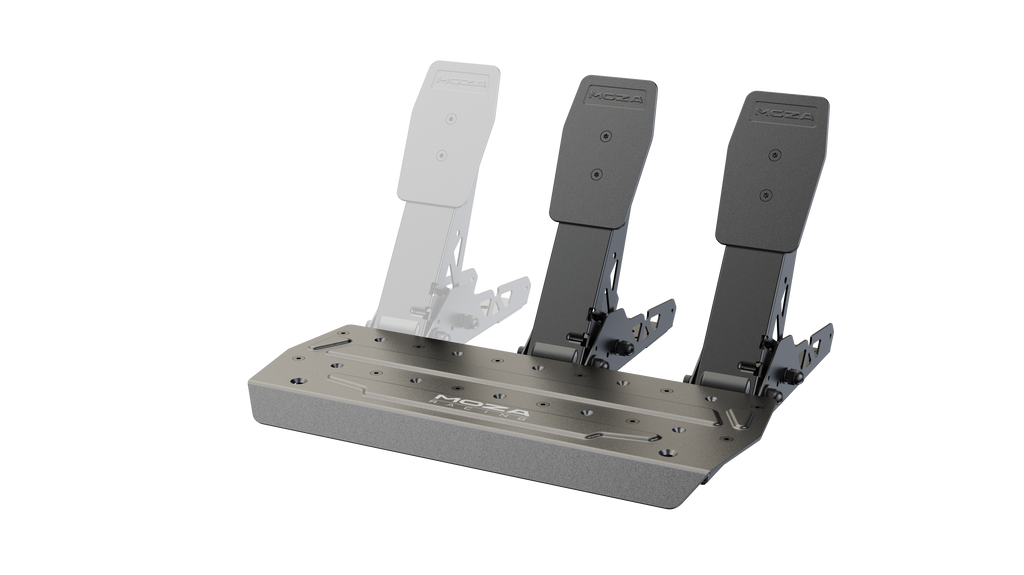

- SR-P Lite Pedals (No Clutch) × 1
- Table Clamp × 1
- Power Adapter
- Power Cord
- USB Cable
- Toolkit
- User Manual
- Warranty Card
FAQs
Yes. The MOZA R3 Racing Bundle (Xbox & PC version) is officially licensed for Xbox Series X|S and also works with Windows 10/11 PCs. On Xbox, it supports Forza Horizon 5, Forza Motorsport, and the F1 series. On PC, it is compatible with many leading sim racing titles. Just plug in and race—no adapters needed.
Absolutely. The R3’s direct drive motor outputs 3.9Nm peak torque, providing more detail and immersion than gear or belt-driven systems. Both casual and experienced sim racers will feel smooth, precise feedback.
The bundle includes:
- R3 Direct Drive Wheelbase
- MOZA ESX Steering Wheel (Xbox licensed)
- SR-P Lite Pedals
- Table Clamp Mounting Kit
It’s race-ready right out of the box. You can also mount it to a full rig if you prefer.
Yes. Using MOZA Pit House on PC, you can tweak FFB strength, button mappings, pedal dead zones, and more. Xbox users can adjust in-game settings. Firmware updates keep everything up to date.
R3 Direct Drive Wheelbase:
Main body – 24 months
Power supply – 12 months
Cable – 6 months
ES Steering Wheel: Main body – 12 months
SR-P Lite Pedals:
Main body – 12 months
Cable – 6 months
Table Clamp & Accessories: Not covered
